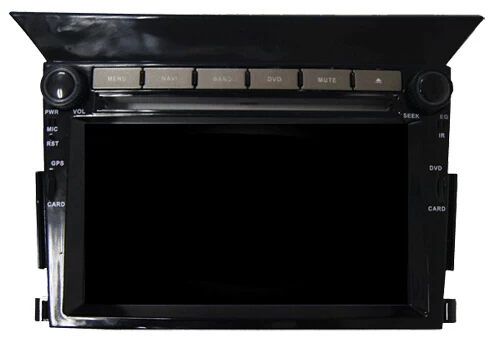

LSQ STAR Car DVD for Honda Pilot

  • (Click on the picture above to view larger image)
  • Car DVD for Honda Pilot
Disc supportSVCD / DVCD / DVD / VCD / CD / CD-R / CD-RW / JPEG / WMA / MP3 / MP4 / DIVX / AAC / / MP5
Total
Power voltageDC 9V-16V
Overload4Ω
Maximum power output45W × 4
Sound control7db
The bass 20Hz
Treble 20KHZ
Output portAudio: 4 independent output channels
Video: a composite video output channel
Enter portAudio: 2 independent input channels
Video: 3 composite video input channels

Video FeaturesVideo output level: 1.0 Vp-p (75Ω overload)
Video feafures range: 20Hz-20KHZ (1 分贝)
Temperature -10 ℃ + 60 ℃
Humidity15-75% (non-chilled water)

VCD / CD section
Video systemAuto / NTSC / PAL
S / N (signal to noise ratio) 60 db (1KHz of 0 db)
Resolution55dB
Frequency response20Hz-20KHZ
Dynamic range80dB
Distortaion0.4%

DVD section
Video systemAuto / NTSC / PAL
S / N (signal to noise ratio) 75 db (1 KHz of 0 db)
Resolution60dB
Frequency response20Hz-20KHZ
Dynamic range80dB
Distortaion0.4%

FM section
The frequency range87.5-108.0MHz
Practical sensitivity22dB
Down sensitivity9dB
S / N (signal to noise ratio) 60 db (1KHz of 0 db)
Resolution32dB
Frequency response40Hz-13KHZ
Medium frequency10.7MHz

Am part
Frequency range522-1620KHz
Down sensitivity35dB
Practical sensitivity28dB
S / N (signal to noise ratio) 45 db (1 KHz of 0 db)
Medium frequency450MHz
Frequency response40Hz-2.3KHZ

Plarform: A4 ARM11 RADIO TUNNER: SI 4745 MCU: SIRF AT840
ROM: 512M RAM: 128M
Description:
1) The Windows CE 6.0 system. 7-inch high-definition digital touch screen Original HannStar, Huayang temperature loaders.

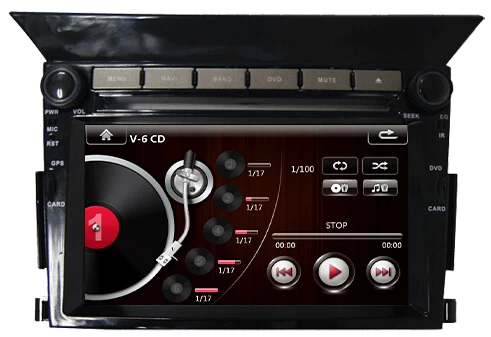

2) supports DVD, VCD, CD, CD-R, CD-RW, MP3, DIVX, MP3, MP4, MP5 (RM, RMVB (1280 * 720P)), SVCD, DVD-9, AVI and JPEG, BMP, PNG , TIFF, JIF

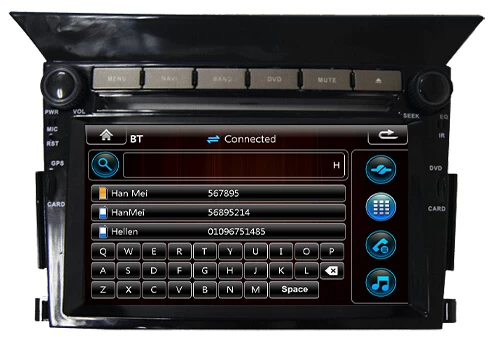

3) Built-in Bluetooth: support handsfree call, dial-up and calls automatically, support A2DP

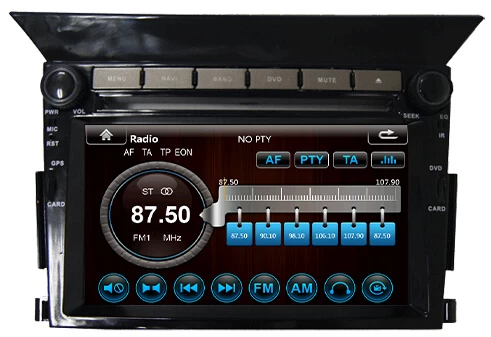

4) Built-in AM / FM radio, 6-disc virtual function and RDS optional
5) iPod connectivity and support PIP (Picture in Picture) function, BT Phonebook
6) CMMB, DVB-T, ISDB-T, ATSC (optional)
7) Dual Zone (Play DVD, radio or television side navigation)
8) Support iPod List
9) BUIT type 4X45W HiFi amplifier: international professional BBE sound processing, enhanced audio ambience and good decorative effect, make music more gentle
Infrared remote control 10) Full function
11) is equipped with reverse video signal input, can support a variety of reversing camera, automatic switch to reverse
12) Electronic and mechanical anti-shock system
13) Support TOMTOM, IGO8, Route66 maps and so on.
14) Languages: English, Russian, Portuguese, Chinese (both), Arabic, Spanish, Turkish, Vietnamese and more menu languages ​​can be customized.
