Car Dvd for VW Passat B5 ST-8916Car Dvd for VW Passat B5 ST-8916Car Dvd for VW Passat B5 ST-8916Car Dvd for VW Passat B5 ST-8916

Car Dvd for VW Passat B5 ST-8916

  • ST-8916

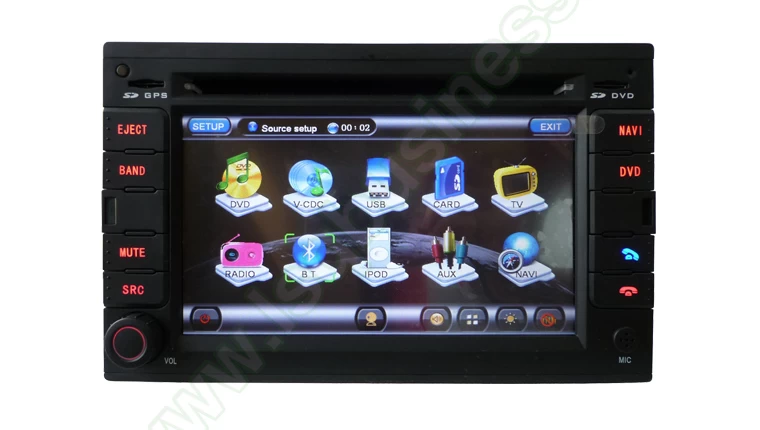

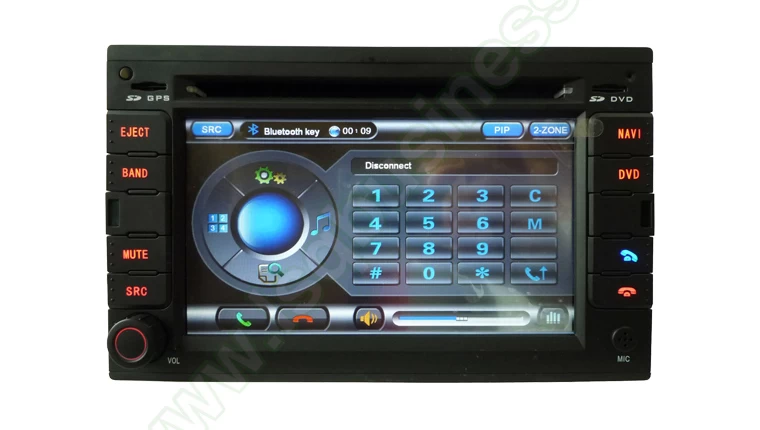

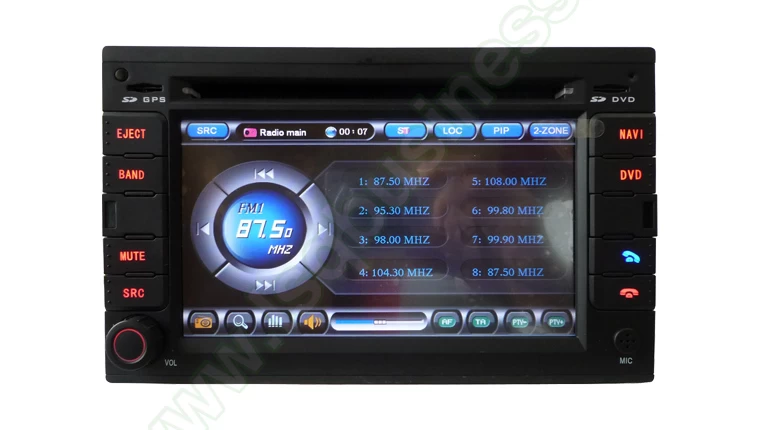

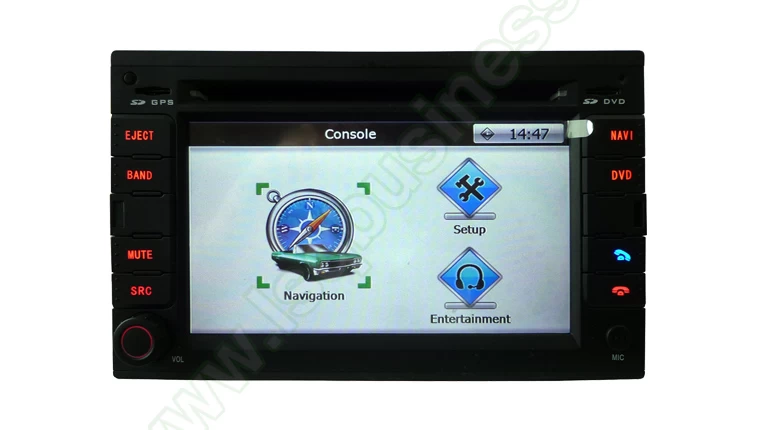

  • (click on the picture above to view larger image)
Its main features:

    HD touch screen/ 800*480 high resolution/

    DVD/ iPod/ Radio/ Bluetooth / analog TV/ GPS navi win-ce 6.0 system/

    dual zone/steering wheel control with canbus optional/ usb/sd slots.


Hot selling points:

virtual 6 CDC changer/ PIP (picture in picture)/ 3G usb port for internet connection;


Technical specification:

GPS CPU 533Mhz, Flash 128MB, 32G max memory,

GPS Baud Rate=9600, Com Port=2.

SiRF STAR III Chipset,

4*45 Watts Amplifier


Product detailed information:

Item Name two Din HD Car DVD with GPS/ Bluetooth/I-POD control/Radio/Amplifier/3G/ V-CDC/ PIP
Key Feature:

Picture in Picture fucntion, 6 virtual CDC memory/ 3G usb port for internet

Dual Zone function, listening to Radio/watching GPS image in the same time

Display 16:09

800*480pixes digital TFT

Language English/Francais/Espanol/Deutsch /Italiano

DVD Section:

Disk Compatibility Supports DVD/VCD/CD/MP3/MPEG4/CD-R/WMA/JPEG


operation system Windows CE6.0

Supported maps Igo, Route66, Tom-Tom, Supports 3D Maps

GPS Baud Rate=9600, Com Port=2

CPU Intel samsung 2450 Processor

Main Frequency 533MHZ


MAX Memory 32G

Orientation presicion <15m

Refurbish frequency 1HZ

Length of antenna 5M


GPS antenna frequency 1575.52MHZ

Bluetooth: A2DP

Microphone built-in

TV TUNER: Built-in Analog TV


PLL Frequency Synthesizer System

Built-in DVB-T/ISDB-T optional

Radio: AM Frequency Range:
522-1620 (Europe/China),530-1710 (America)

FM Tuning Range:
87.5-108 (Europe/China), 87.5-107.9 (America)

Usable Sensitivity 5dBV(S/N=30dB)


Amplifier 4*45 Watts

Aux Video Input 1

Audio & Video Input/Output: Aux Audio input 1

Video Outout 2

Audio Output 4 ( FR/FL/RR/RL)

Camera input 1 (Auto rear view)

Radio Aerial input 1

TV Antenna input 1

I-POD Input 1

Audio Section:

1) Rated Output 4ch*3W

2) Maximum Power Output 4ch*45W

3) Rated Speaker Impedance 4

4) Pre-AMP Output Voltage 2Vrms

5) Pre-AMP Output Impedance <220

7) Video 1 Vp-p(75)

8) Audio 500mVrms

Support Audio type MP3/PCM/WMA

Support Video Type ASF/AVI /WMV /DIVX

SD Card slot 1 slot is for Music/movie, 1 slot is for GPS

Package: 1 x Multimedia DVD Player

1 x User Manual ( english )

1 x GPS antenna ( GPS function )

1 x Radio antenna (Radio reception)

1 x I-Pod wire ( I-POD function )

1 x USB wire ( USB function )

Optional: SD card with IGO map; rear camera.
