Model NO.

ST-9315 ( Benz W204)

Car types

Mercedes-Benz C-class W204(2008-2010)

Out Power amp

4X45W maximum

EQ Type

EQ/Jazz/Rock/Pop/Nor/Dance/Classic/Customized

Signal-to-Noise

>55dB

Distortion

0.10%

Operating system

Microsoft Windows CE 6.0

Main Frequency

SiRF Altas IV (ARM11, 533MHz)

Chip

SiRF Altas IV

Store Space

64M

Navigation Software Storage

support SD/MMC/SDHC (Max for SDHC 4GB~32GB)

Support Map

IGO, Route66, Sygic, Garmin, Polnav

Support Audio Type

WMA9, MP3, WAV

Support Video Type

wmv, avi

Card Supported

SD card

GPS Resolution Output

800*480

Form Factor

In Dash

Enclosure Type & Security

2 Din

Screen Dimension

7 inch 16:9

Screen Type

Touch Screen

Screen Resolution

800*480 Digital TFT

Picture in picture

NO

Background picture changeable

Yes

Function icons removeable

Yes

Contrast/Brightness adjustment

Yes

Main Interface Language

English,French,Russian,Italian,Spanish,German,Turkey,Greece,Hungaty

GPS Console Language

English,Deutsch, España, Italiano, Française, Português, Russian, Chinese simplified, Chinese traditional

GPS Voice Guidance Language

Support map language

AM Frequency Range

522-1620 (Europe), 530-1710 (America),522-1621 (Russia),

FM Tuning Range

87.5-108 (Europe), 87.5-107.9 (America),65.0-108.1 (Russia)

RDS

Yes

Buffer time

CD/MP3 10s/16s

Media type

DIVX/DVD/DVD-RS/DVD+RS/DVD-RW/VCD/CD-R/CD-RW/MP3/MP5/WMA/AVI

Signal-To-Noise Ratio

>60db

Digital TV or Analog TV

digital TV (DVBT/ISDB/ATSC) is optional

DVB-T information

Digital TV receiving standard: MPEG-4

Video formats supported (up tp 1080p):

WMV/ MPEG4/ MPEG3/ AVI(DIV-X)/ AVI(X-VID)/ VCD

Audio formats supported

MP4/ WMA/ AAC

Image formats supported

JPG

Version

V2.1

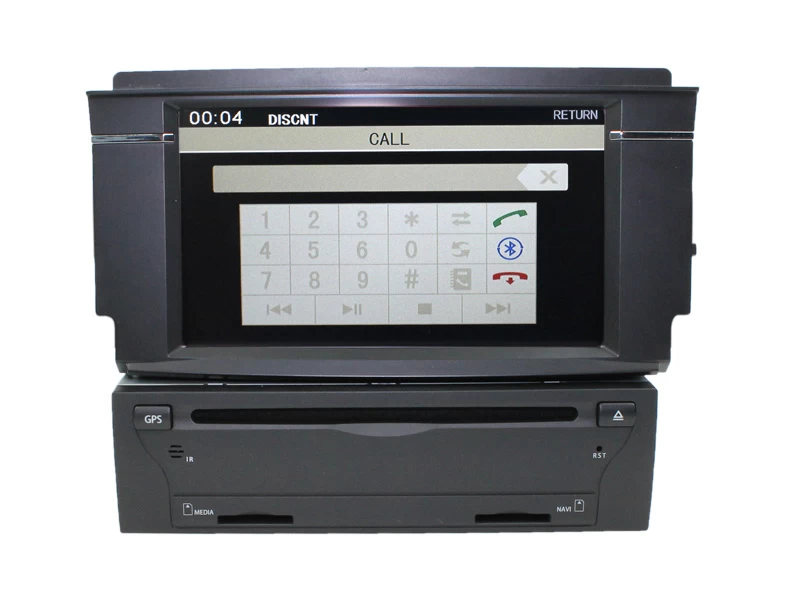

Functions "Accept" Key

Hang up call, redail, reject, accept call

Built-in microphone

Yes

Received Call

Yes

Dialled Call

Yes

Missed Call

Yes

Video Output

2ch

Audio Input

2ch

Audio Input

4.1 channel

USB/SD Card Port

USB/SD (MAX 32GB or <1500 files)

Subwoofer Output

Yes

Iphone/Ipod Control

Yes (Connection Cable for Ipod Included)

Portable HDD Compatible

No

Built-in Speaker

Yes

CDC(CD Charger)

No

Motorized slide-down Face

Yes

Anti-Shock

Electronic & Mechanical

Steering wheel control

Yes

Features

GPS, Radio/RDS, digital TV, Bluetooth, Ipod suport, Steering wheel control

Color

Black

Dimensions / WxDxH

165*178*100mm(LWH)

Operation temperature

-10°C-50°C

Storage temperature

-20°C~75°C

Net Weight

5.5kg

Warranty

1 year

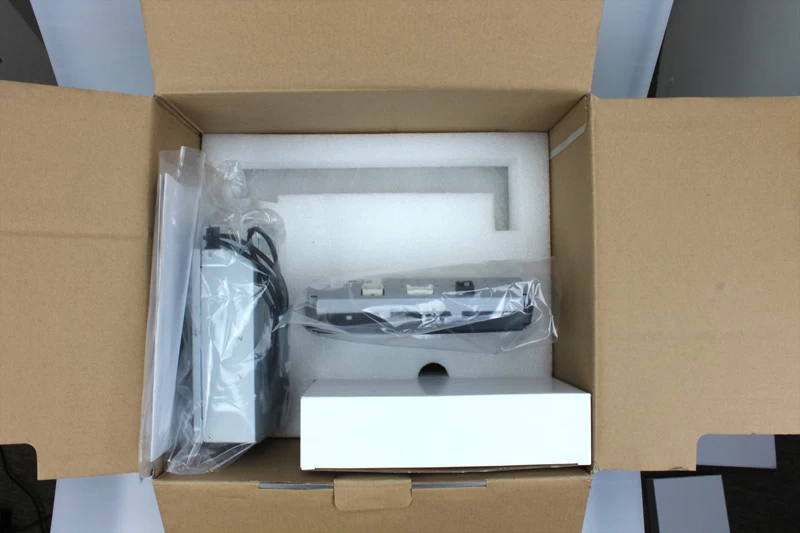

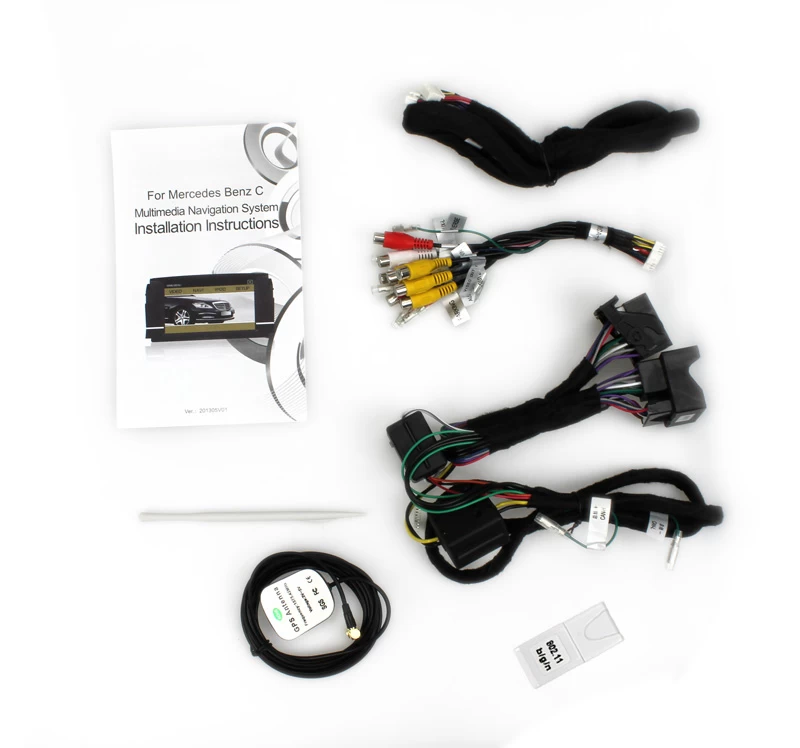

Package Contents

2 din car DVD

Magnetic GPS antenna(3m wire)

Magnetic Digital TV antenna(optional)

Metal fasteners and screws

iPod and USB cable

User manual

Installation instructions

Touch pen

ISO Power cable

Canbus box
